PRODUCT DESCRIPTION

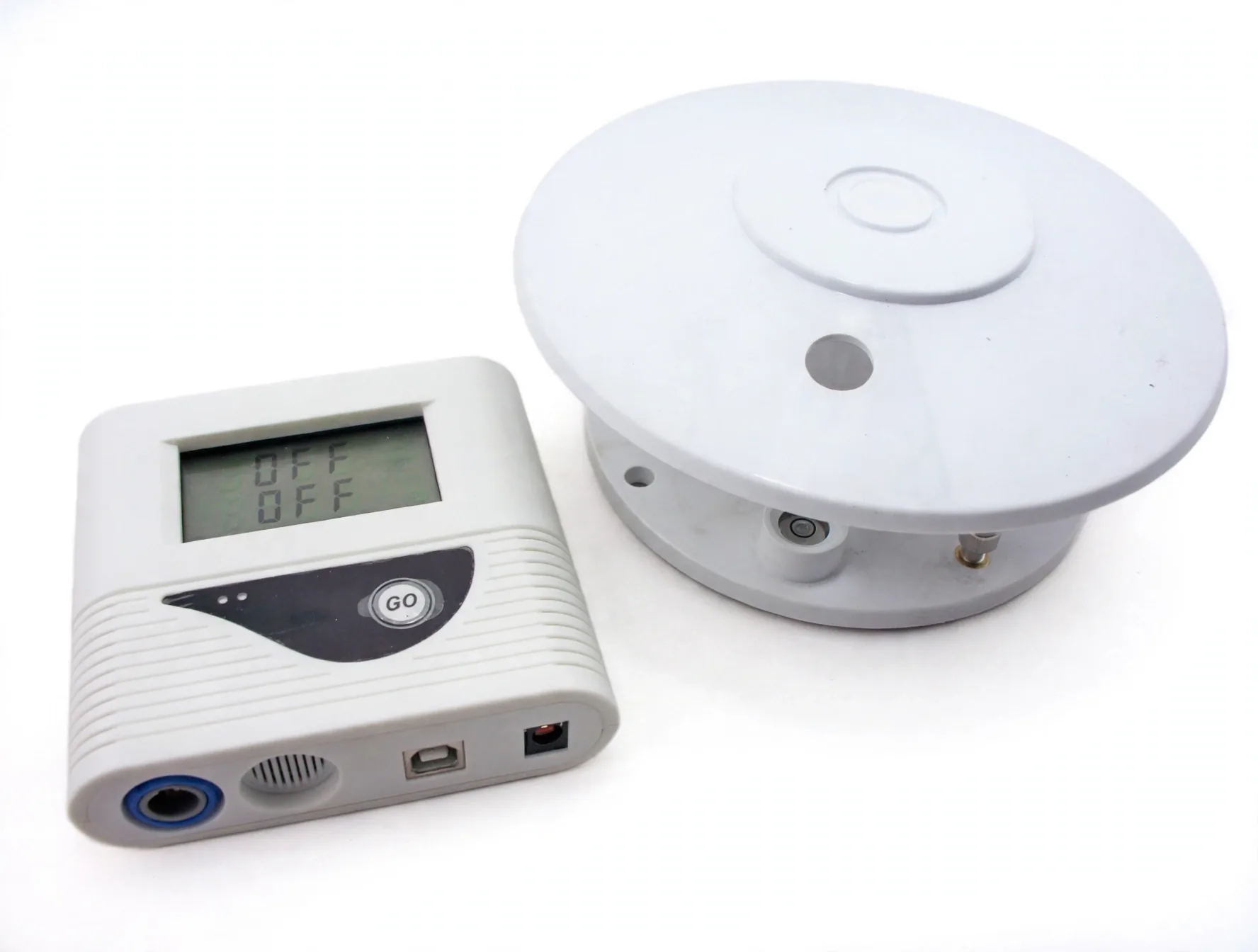

The TH-ZW1 is a portable UV radiation data logger covering ultraviolet bands of 280–400, 320–400 or 280–320 nm. It logs at one-second intervals with alarm functions and stores up to 32,768 records over a 0–1000 W/m² range.
A built-in lithium battery or 12V adapter powers field deployments, and records download via USB cable with optional RS232 for analysis and reporting.
SPECIFICATIONS
| Measuring Range | 0–1000 W/m² |
| Accuracy | ≤ ±5% |
| Resolution | 1 W/m² |
| UV Bands | 280–400, 320–400 or 280–320 nm |
| Storage Capacity | 32,768 records |
| Dimensions | 102 × 109 × 29 mm |
| Weight | 178 g |
| Output / Communication | USB data cable / optional RS232 |
| Power Supply | Built-in 3.6V lithium battery / 12V adapter |
PRODUCT APPLICATION
The TH-ZW1 portable UV radiation data logger is widely used in solar UV radiation measurement.
It is suitable for UV index monitoring, materials weathering studies, and environmental observation programs that track ultraviolet exposure over time.
