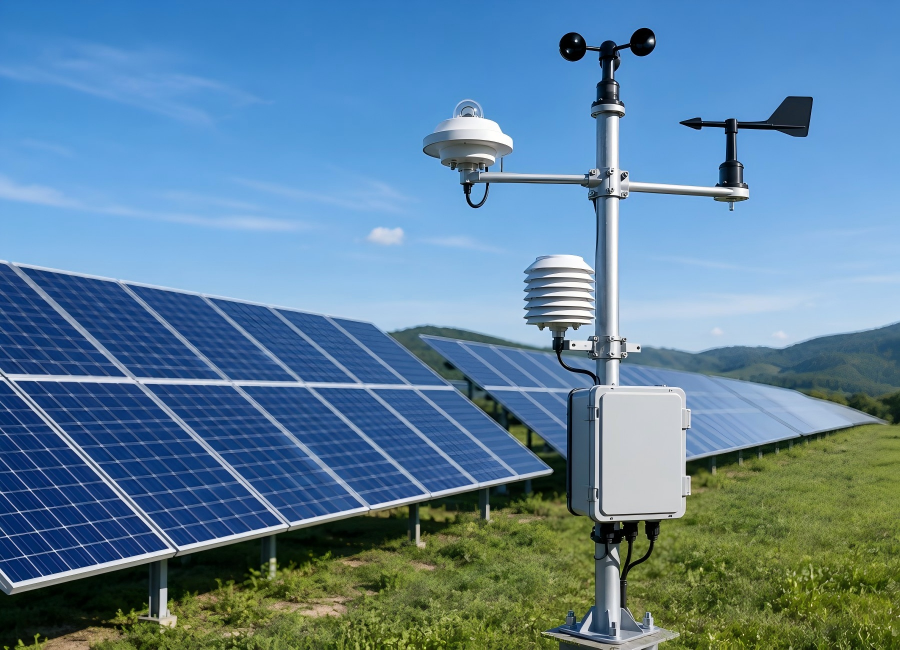

Solar PV Monitoring Solution
Real-time weather, irradiance and PV module temperature monitoring for solar power plants and distributed PV projects.
Environmental Monitoring for PV Power Generation
Solar PV monitoring helps operators understand real site conditions that affect power generation, including solar irradiance, module temperature, ambient weather and wind conditions.
Throvin provides PV weather stations, solar radiation sensors, wind sensors, temperature and humidity sensors, radiation shields and data loggers for solar power plant monitoring and distributed PV projects.

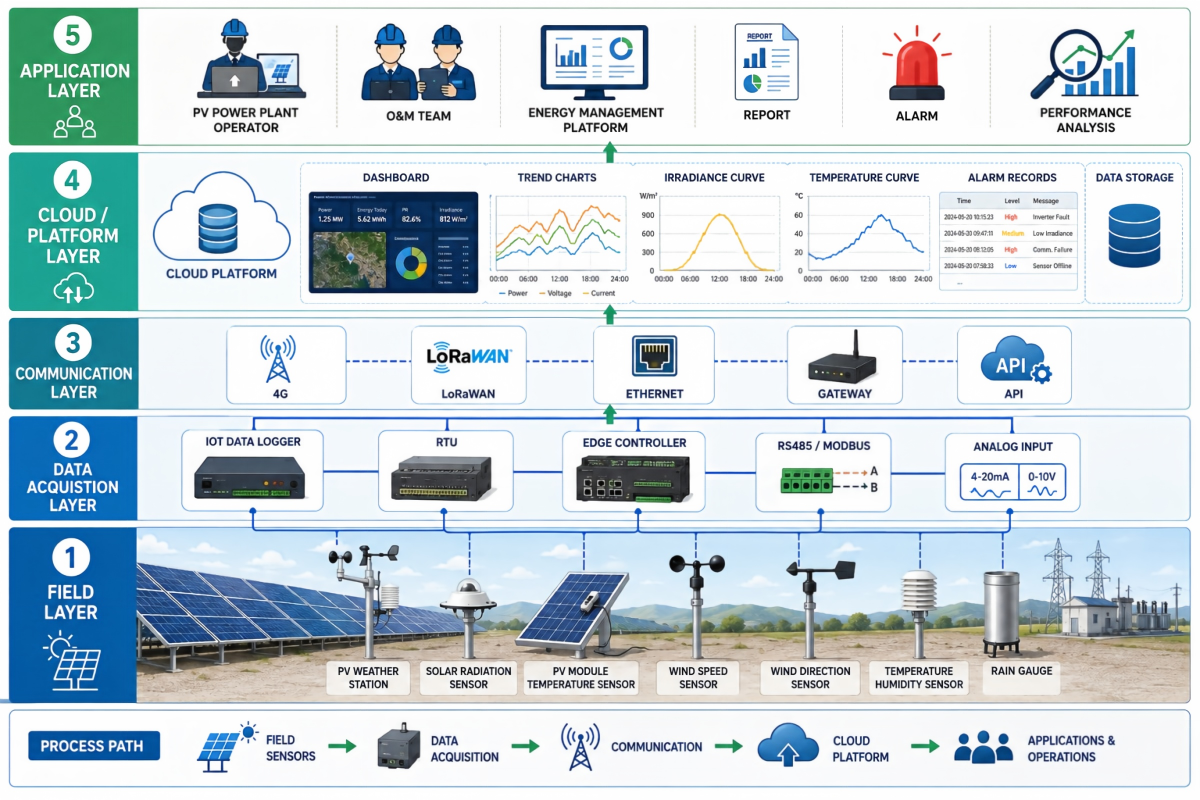

How the PV Monitoring System Works
A solar PV monitoring system usually includes field sensors, data acquisition devices, communication modules, cloud or local platforms, and PV operation analysis.
Field Layer
PV sensors measure solar irradiance, module temperature, wind, ambient temperature, humidity and rainfall.
Data Acquisition
Data loggers collect signals such as RS485 Modbus, analog output or pulse input from field sensors.
Communication
Monitoring data can be transmitted through LoRaWAN, 4G LTE, Ethernet, gateway or customer systems.
PV Analysis
Data supports irradiance trend analysis, module temperature tracking, alarms and performance evaluation.
Parameters That Can Be Monitored
Solar PV projects require accurate environmental data to support power generation analysis, operation management and site safety.
Solar Irradiance
Measures solar radiation intensity for PV output analysis and solar resource evaluation.
PV Module Temperature
Tracks panel surface temperature to support temperature loss and abnormal heating analysis.
Wind Speed & Direction
Monitors wind conditions for site safety, structural risk and environmental evaluation.
Ambient Temperature
Measures surrounding air temperature for PV performance comparison and site condition analysis.
Humidity & Pressure
Supports complete meteorological monitoring for PV plant environment and operation records.
Rainfall
Provides rainfall data for outdoor PV site maintenance, weather records and operation planning.
Main Products Used in This Solution
The following products are commonly used in solar PV weather monitoring, irradiance monitoring and field data acquisition projects.

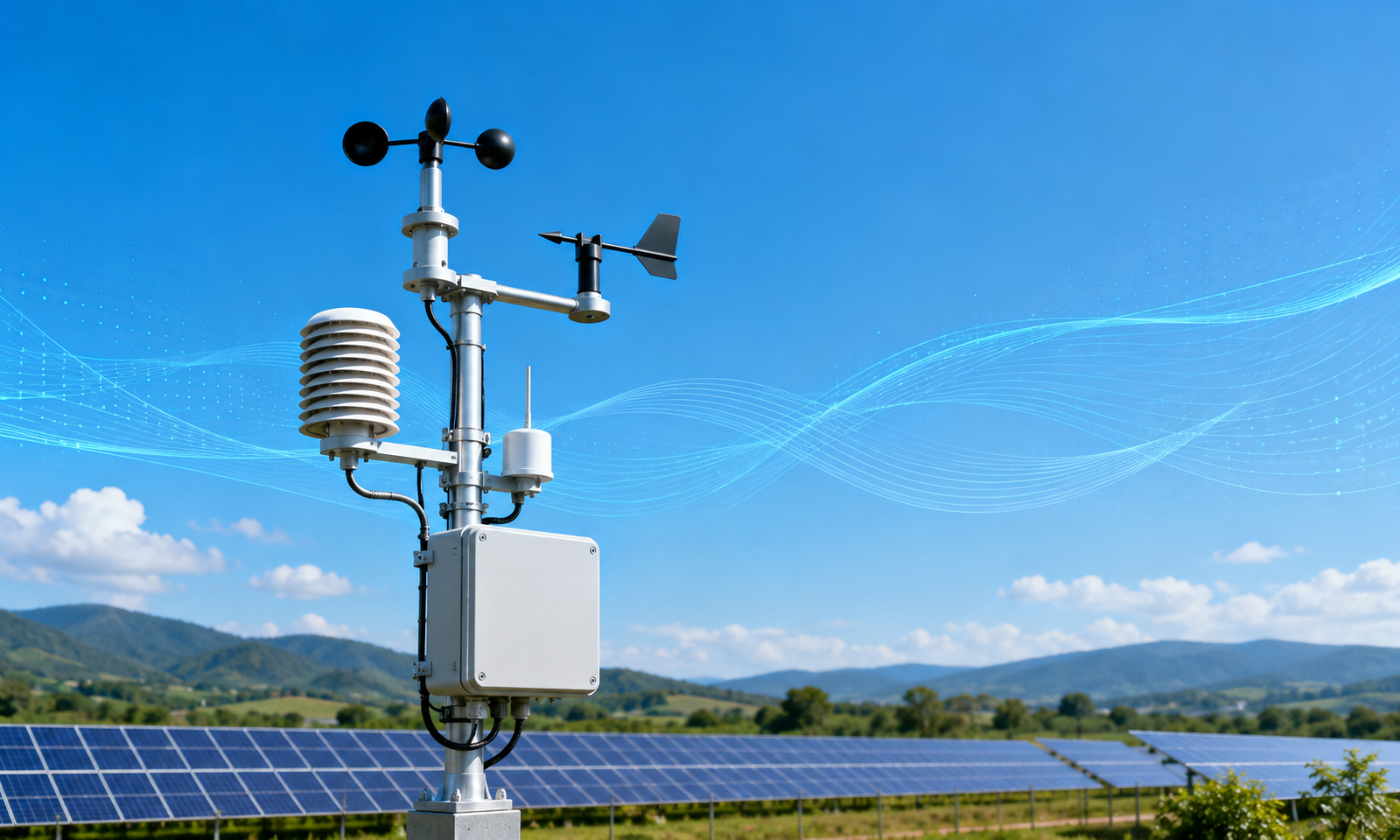

Weather Station
For integrated PV site weather monitoring and outdoor environmental data collection.

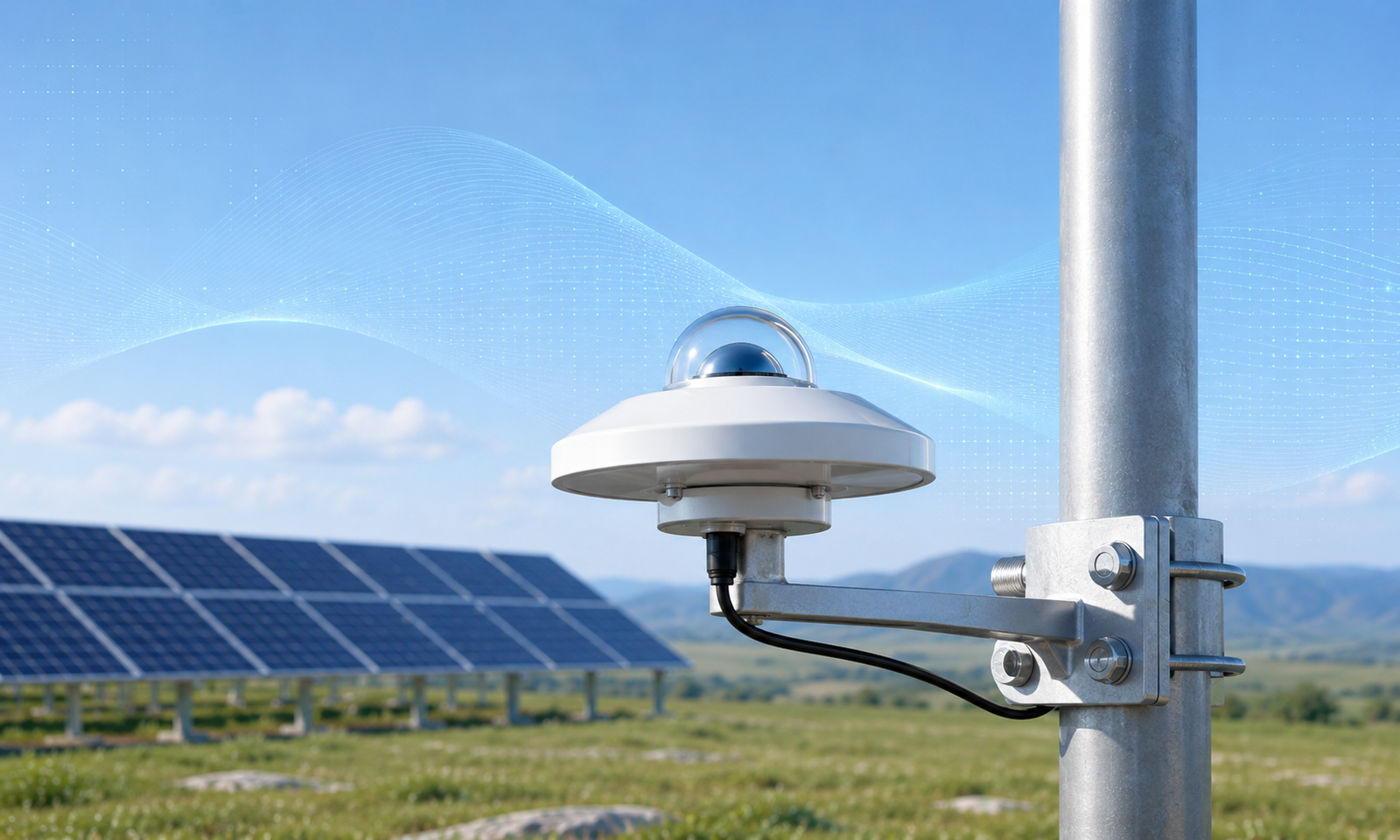

Solar Radiation Sensor
For global irradiance, plane-of-array irradiance and solar resource monitoring.

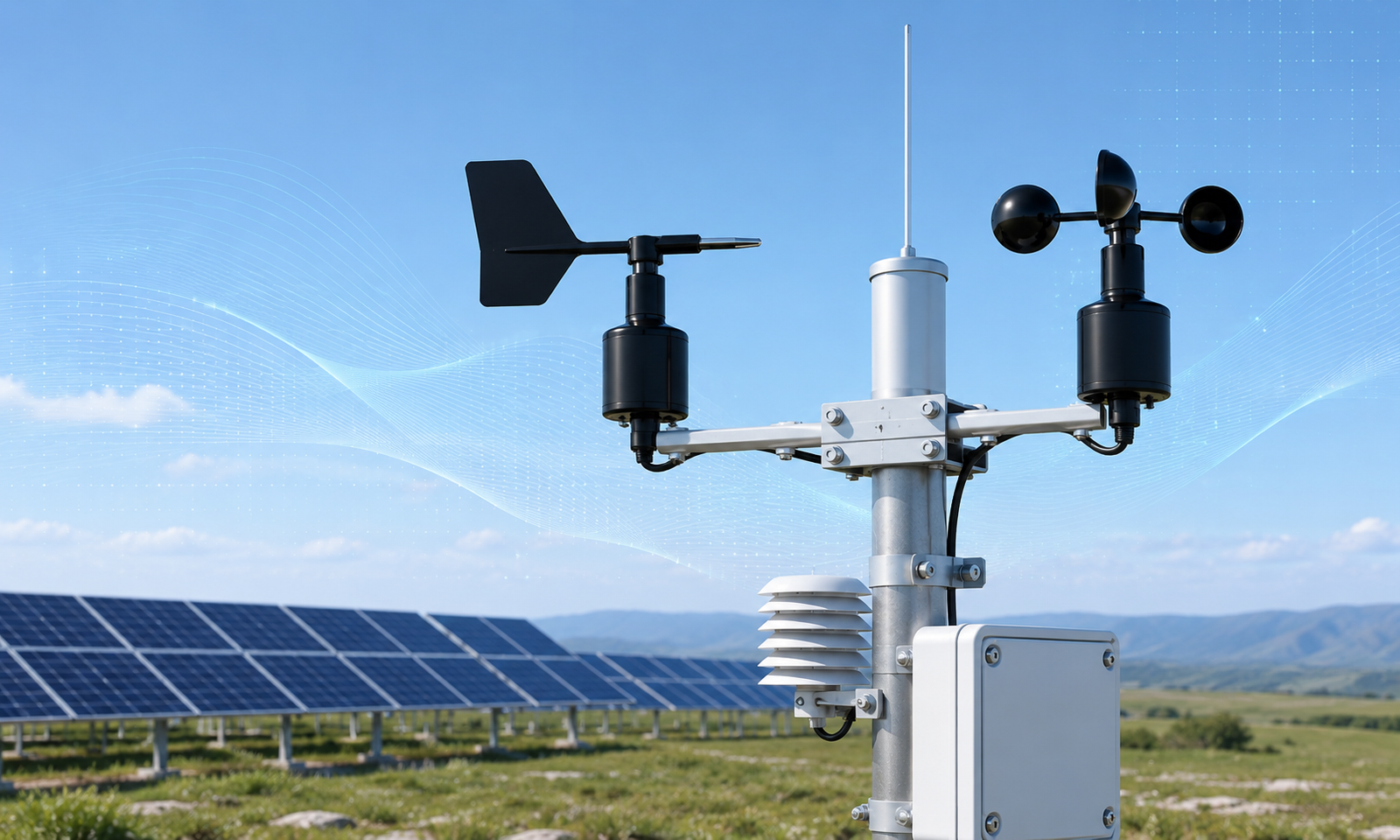

Wind Sensor
For wind speed and wind direction monitoring at solar PV power stations.

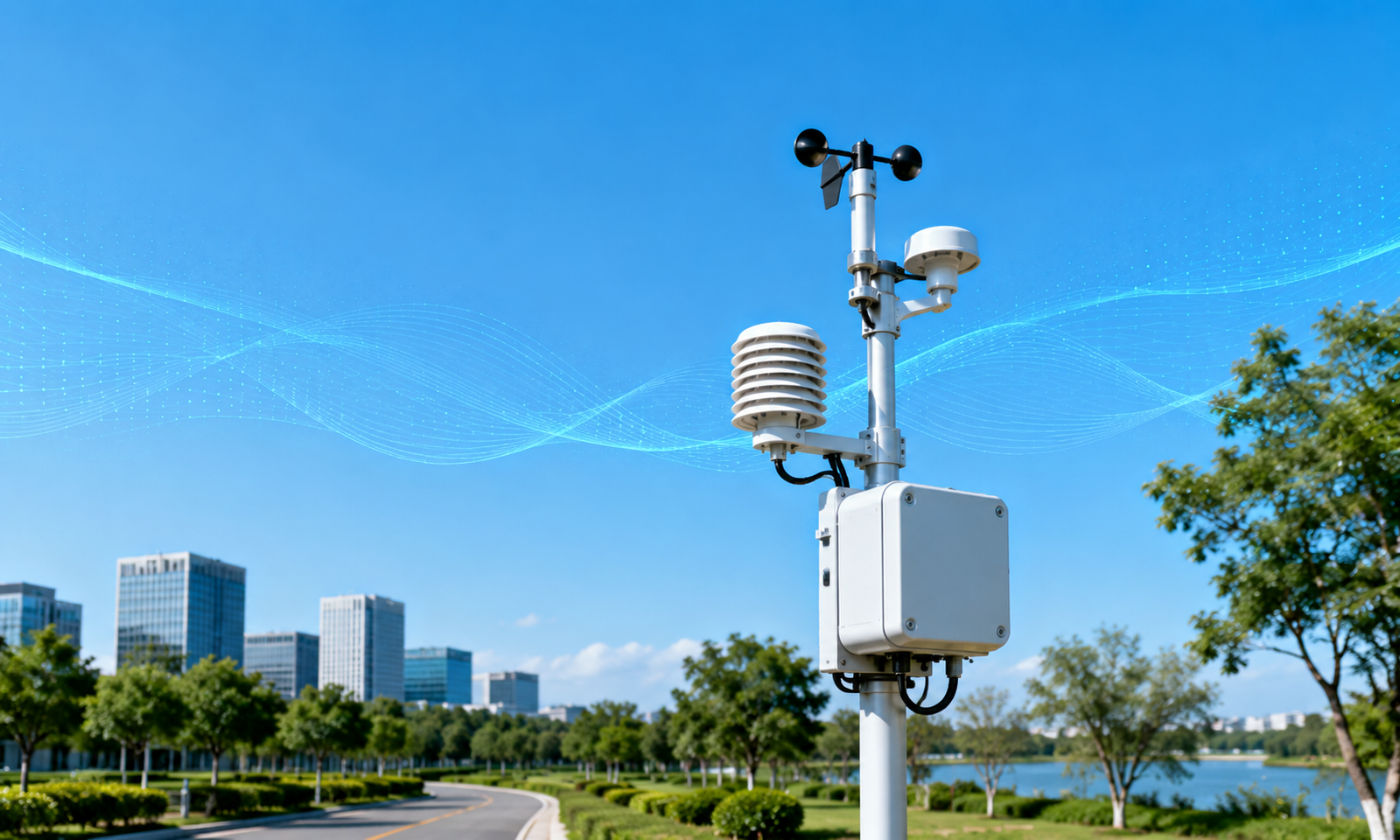

Temperature Humidity Sensor
For ambient temperature and humidity monitoring in outdoor PV environments.

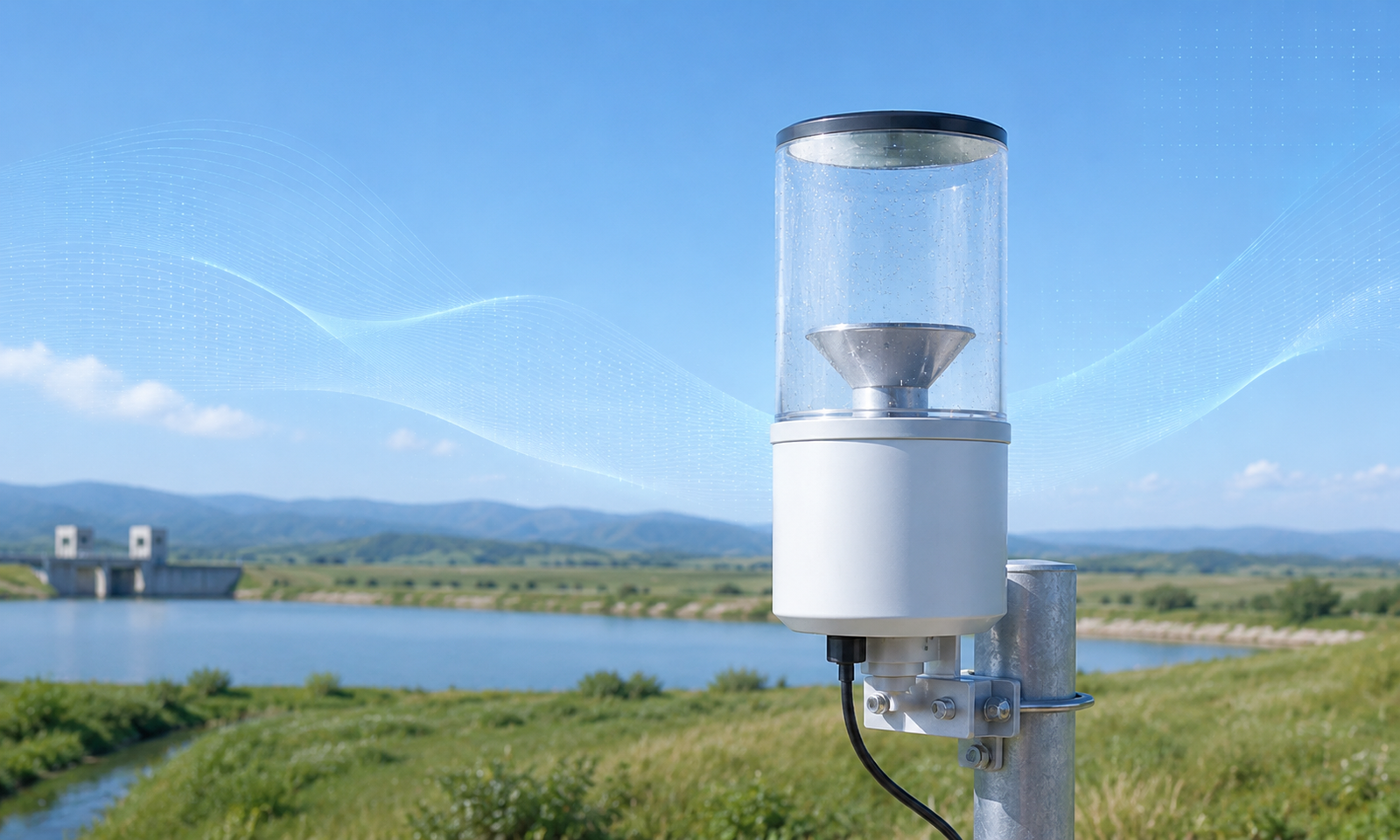

Rain Gauge
For rainfall monitoring, weather records and PV site operation planning.

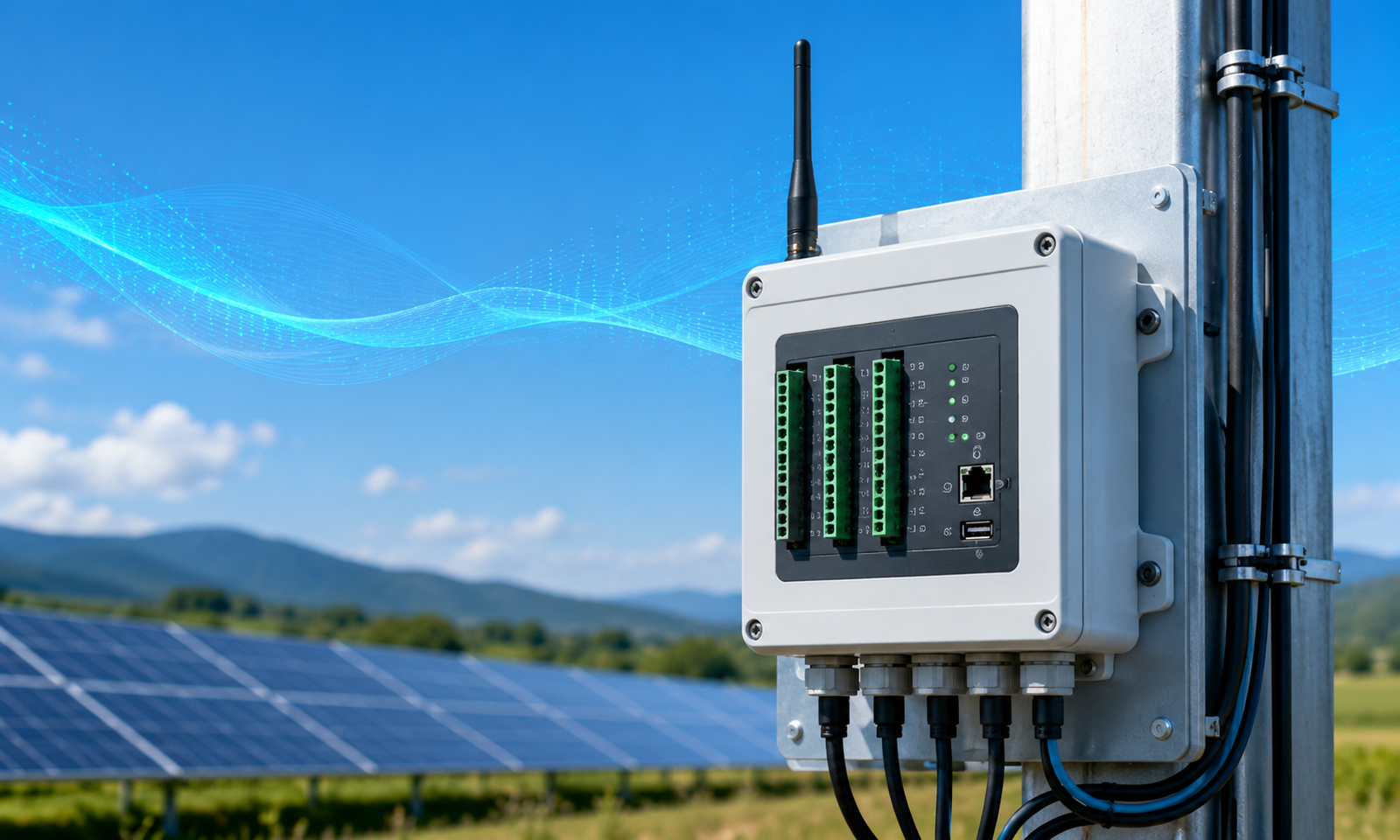

Data Logger
For sensor signal collection, data recording and remote transmission.
Typical Project Scenarios
Solar PV monitoring systems can be used in centralized power plants, distributed PV projects and rooftop solar systems.
Need a Solar PV Monitoring Solution?
Tell us your PV project type, monitoring parameters, installation environment and communication requirements. Throvin will help you choose suitable PV weather sensors and data acquisition devices.
Request Solution Support
