PRODUCT DESCRIPTION

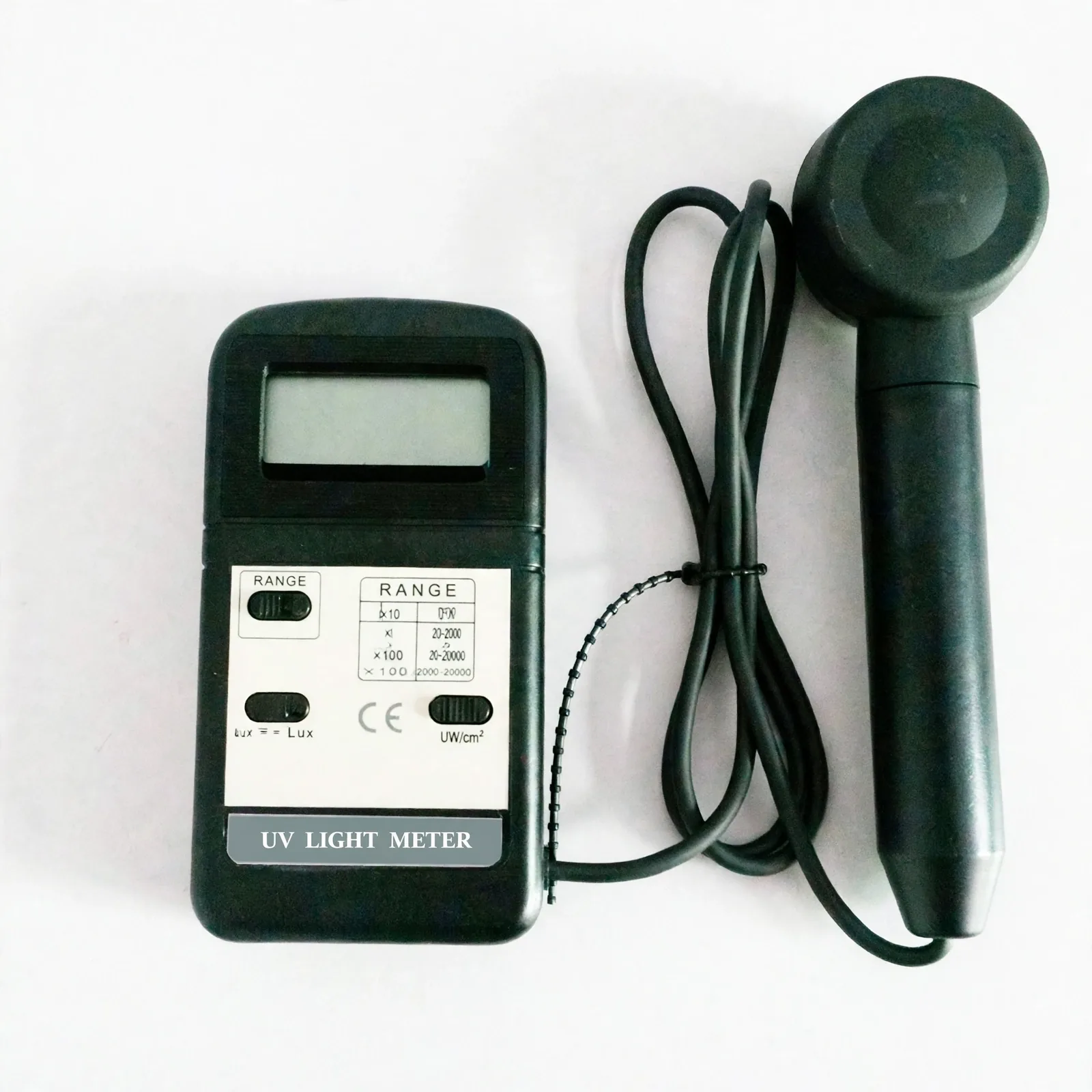

The TH-340 is a professional UVA/UVB meter with a separated probe and a 290–390 nm sensor. Two ranges — 1999 µW/cm² and 19990 µW/cm² — handle both ambient monitoring and intense industrial UV sources, with 0.4 s sampling for quick surveys.
The separate probe reaches into curing chambers, welding areas and exposure equipment while the operator reads the meter from a safe position.
SPECIFICATIONS
| Sensor Band | 290–390 nm |
| Lo Range | 1999 µW/cm² × 1 |
| Hi Range | 19990 µW/cm² × 10 |
| Accuracy | ±(4%FS + 2dgt) |
| Sampling | 0.4 s |
| Operating Temperature | 0–50°C |
| Weight | 220 g |
| Output / Communication | Direct probe measurement |
| Power Supply | DC 9V battery |
PRODUCT APPLICATION
The TH-340 UV radiation meter is widely used in welding, solar monitoring, UV sterilization, photolithography and laboratory research.
It is suitable for checking UV curing intensity, monitoring worker exposure near welding and UV sources, and process control in photolithography lines.
