PRODUCT DESCRIPTION

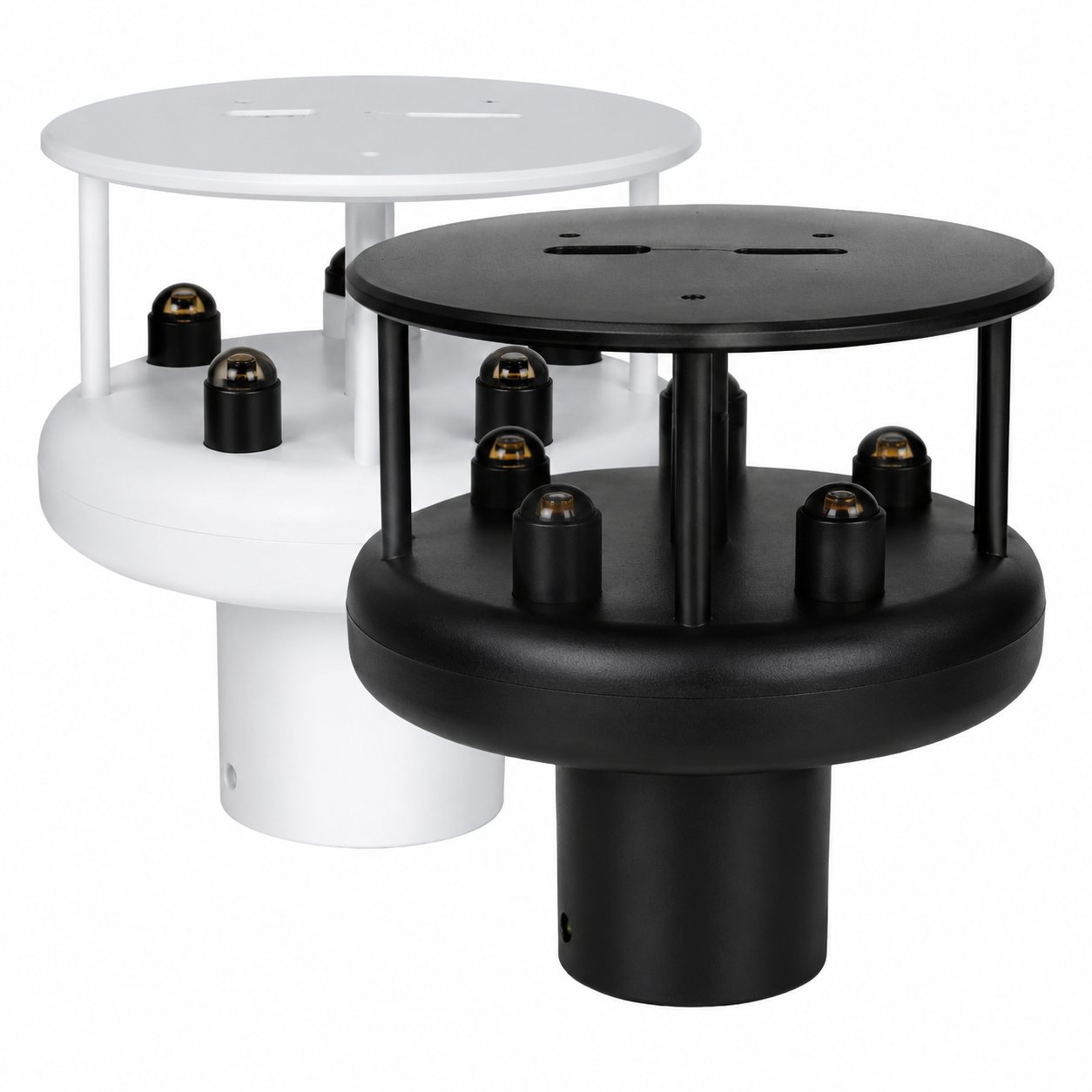

The TH-120-01H6 is an integrated ultrasonic wind speed and direction sensor designed for outdoor wind monitoring and meteorological data collection. Based on its appearance, this model features a round dual-layer structure with multiple support columns, an open airflow channel, several sensing probes inside the sensing area, and a cylindrical mounting interface at the bottom. It measures wind speed from 0 to 60 m/s (0.01 m/s resolution, ±2% accuracy, customizable to 0–75 m/s) and wind direction from 0 to 359° (1° resolution, ±3° accuracy). Its compact design makes it suitable for integration with various outdoor weather monitoring devices.
The product is available in black and white housing options, making it easy to match different project environments and equipment designs. Compared with traditional cup anemometers or wind vane sensors, the TH-120-01H6 uses a structure without exposed mechanical rotating parts, helping reduce mechanical wear and maintenance frequency. Rated IP65 with electromagnetic shielding compliant with EN61000-6-2, it operates from -40 to +80°C and 0–100% RH on DC 12–24 V power, drawing just 0.12 W typically (1.6 W max). It offers digital outputs (RS485, RS232, SDI-12) plus two 4–20 mA analog outputs. It is suitable for long-term outdoor monitoring projects and can work with data loggers, controllers, weather stations, or integrated environmental monitoring systems to provide data support for wind speed and direction monitoring, environmental data analysis, and automation control.
SPECIFICATIONS
| Sensor Type | Ultrasonic wind speed and direction |
| Wind Speed Range | 0–60 m/s (customizable to 0–75 m/s) |
| Wind Speed Resolution | 0.01 m/s |
| Wind Speed Accuracy | ±2% |
| Wind Direction Range | 0–359° |
| Wind Direction Resolution | 1° |
| Wind Direction Accuracy | ±3° |
| Digital Output | RS485, RS232, SDI-12 |
| Analog Output | 2 × 4–20 mA current output |
| Power Supply | DC 12–24 V |
| Power Consumption | 1.6 W (max), 0.12 W (typical) |
| Protection Rating | IP65 |
| Electromagnetic Shielding | Compliant with EN61000-6-2 |
| Material | ASA |
| Weight | 0.36 kg |
| Operating Temperature | -40 to +80°C |
| Operating Humidity | 0–100% RH |
| Optional Accessories | Mounting bracket, solar power supply, cloud platform |
PRODUCT APPLICATION
The TH-120-01H6 ultrasonic wind speed and direction sensor is widely used in weather stations, environmental monitoring stations, smart agriculture systems, greenhouses, photovoltaic power stations, wind energy projects, ports, docks, marine shipping, highways, bridges, outdoor safety monitoring, and industrial automation monitoring.
It is suitable for outdoor monitoring systems that require both wind speed and wind direction data collection. By helping users understand real-time on-site wind conditions, it provides useful reference data for weather monitoring, agricultural environmental control, equipment operation management, safety warning, and automation systems.
