PRODUCT DESCRIPTION

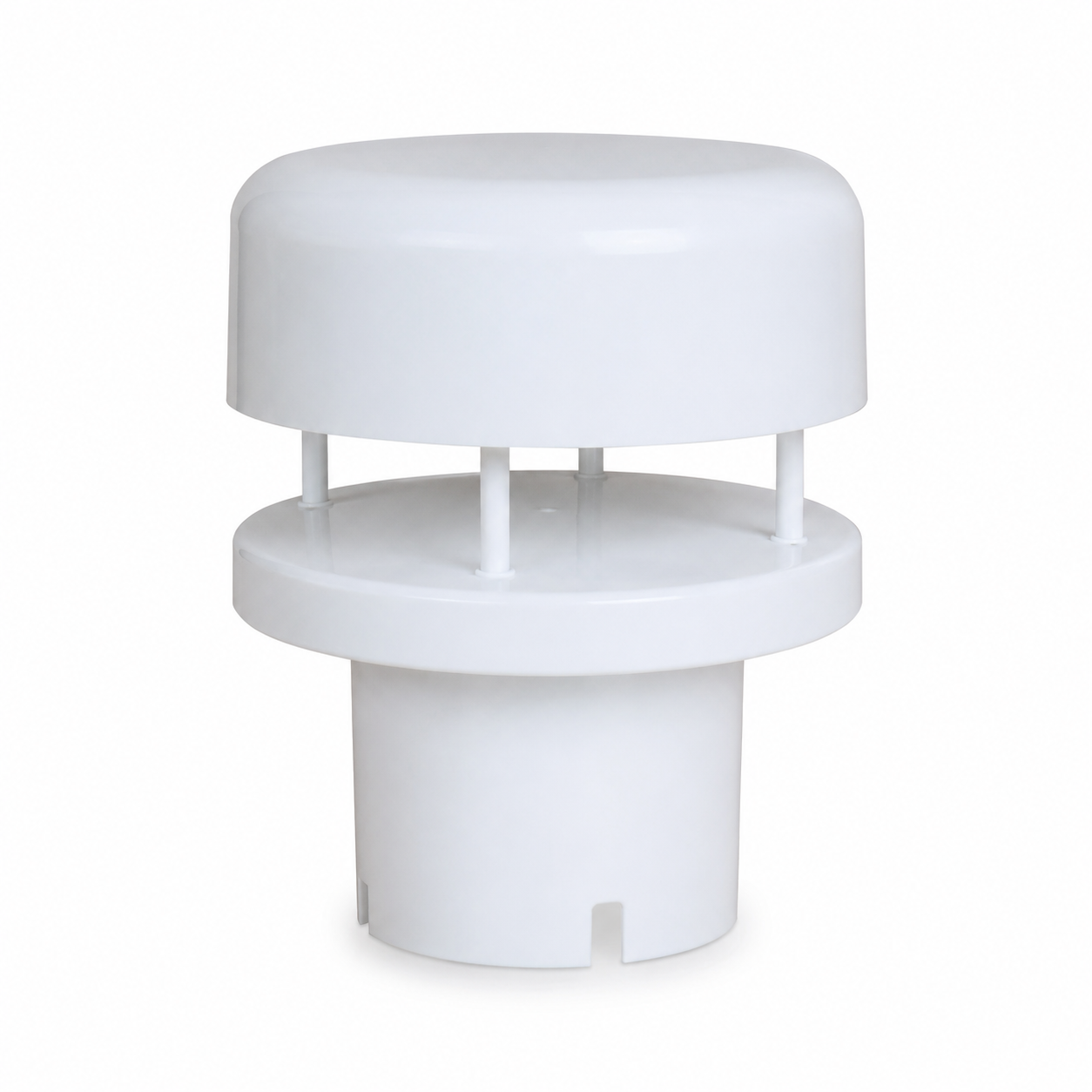

The TH-120-01H1 is an integrated ultrasonic wind speed and direction sensor designed for outdoor wind monitoring and meteorological data collection. It features a non-mechanical structure without external rotating parts. The product has a white cylindrical body, a round protective top cover, multiple support columns, and an open airflow channel in the middle, allowing it to detect airflow changes in the surrounding environment. It measures wind speed from 0 to 40 m/s (0.1 m/s resolution, ±3% accuracy) and wind direction from 0 to 359° (1° resolution, ±3° accuracy).
With a compact and clean structural design, the sensor is suitable for installation on weather stations, environmental monitoring equipment, agricultural monitoring systems, and outdoor automation platforms. Compared with traditional mechanical wind sensors, the ultrasonic structure reduces the need for external rotating components such as wind cups or wind vanes, making it suitable for long-term outdoor monitoring projects that require stable operation and lower maintenance. Rated IP65 and built for -50 to +80°C and 0–100% RH, it runs on DC 12–24 V and connects via RS232, RS485, or SDI-12 with Modbus-RTU protocol. It can work with data loggers, controllers, or integrated weather monitoring systems to provide data support for wind speed and direction monitoring, environmental analysis, and equipment control.
SPECIFICATIONS
| Sensor Type | Ultrasonic wind speed and direction |
| Wind Speed Range | 0–40 m/s |
| Wind Speed Resolution | 0.1 m/s |
| Wind Speed Accuracy | ±3% |
| Wind Direction Range | 0–359° |
| Wind Direction Resolution | 1° |
| Wind Direction Accuracy | ±3° |
| Output / Communication | RS232, RS485, SDI-12 |
| Communication Protocol | Modbus-RTU |
| Baud Rate | 1200–115200 |
| Power Supply | DC 12–24 V |
| Protection Rating | IP65 |
| Material | ASA / aluminum alloy |
| Weight | 0.38 / 0.78 kg |
| Operating Temperature | -50 to +80°C |
| Operating Humidity | 0–100% RH |
| Optional Accessories | Mounting bracket, solar power supply, cloud platform |
PRODUCT APPLICATION
The TH-120-01H1 ultrasonic wind speed and direction sensor is widely used in weather stations, smart agriculture systems, greenhouses, photovoltaic power stations, wind energy projects, environmental monitoring stations, highways, urban roads, bridges, ports, docks, outdoor safety monitoring, and industrial automation monitoring.
It is suitable for outdoor monitoring systems that require both wind speed and wind direction data collection. By helping users understand real-time wind conditions on site, it provides useful reference data for meteorological analysis, environmental management, equipment operation, safety warning, agricultural control, and automation systems.
