PRODUCT DESCRIPTION

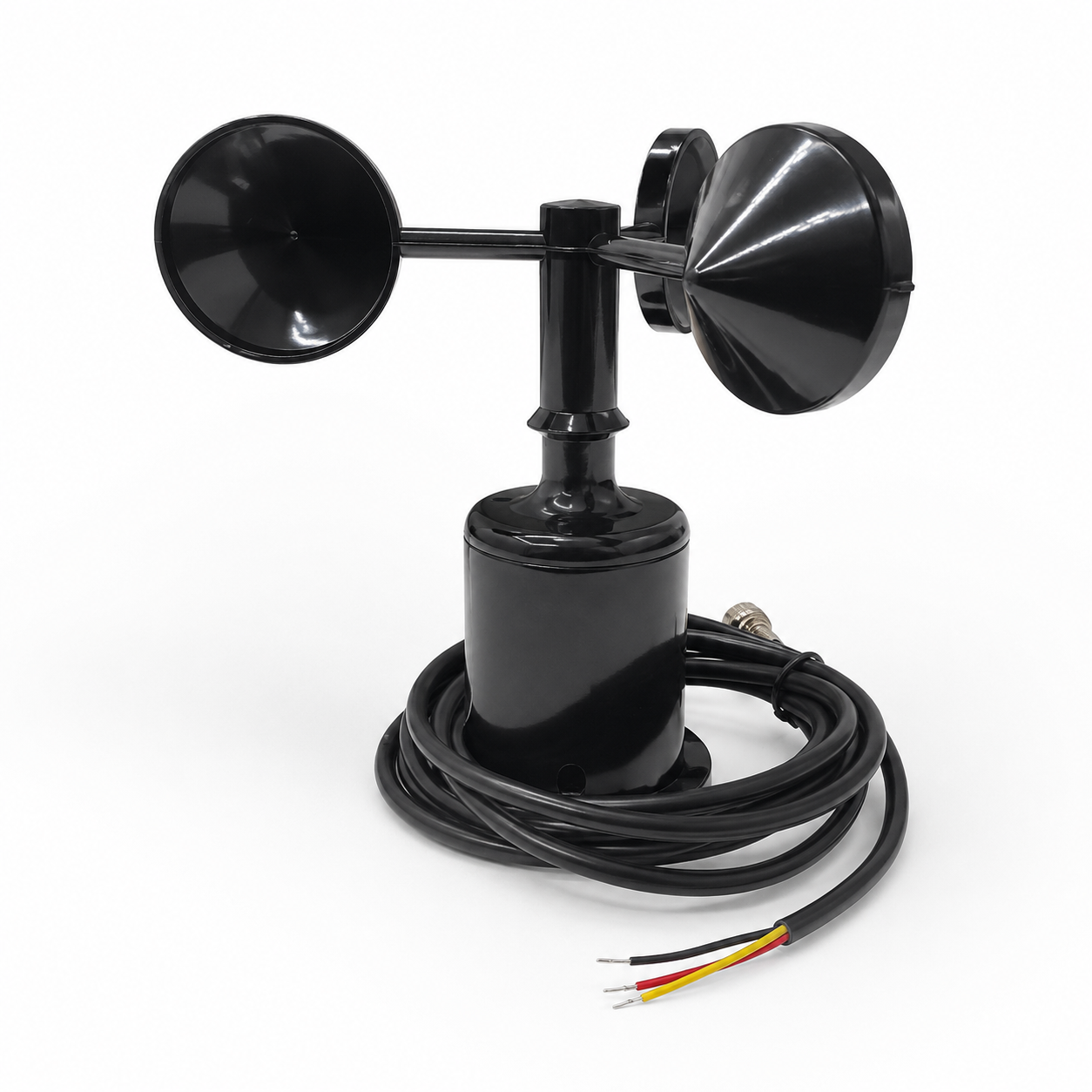

The TH-100-01X is a three-cup anemometer wind speed sensor designed for outdoor wind speed monitoring and meteorological data collection. It measures wind speeds from 0 to 50 m/s with an accuracy of ±0.5 m/s below 5 m/s and ±3% FS at 5 m/s and above, and starts at wind speeds as low as 0.5 m/s. The rotating cup structure consists of cup rotor components, a horizontal support arm, a vertical rotating shaft, a cylindrical housing, and a connection cable. The cups rotate with airflow to detect wind speed changes and provide wind speed data support for monitoring systems.
The product features a black industrial appearance, compact structure, and convenient installation design, with IP65 protection for reliable operation in harsh outdoor environments. The cylindrical body and cable connection make it suitable for integration with data loggers, controllers, weather stations, or environmental monitoring systems. The included cable with exposed wire ends allows flexible field wiring and system integration according to different project requirements.
SPECIFICATIONS
| Measuring Range | 0–50 m/s |
| Starting Wind Speed | ≥0.5 m/s |
| Accuracy | ±0.5 m/s (<5 m/s); ±3% FS (≥5 m/s) |
| Wind Resistance | >70 m/s |
| Output / Communication | 4–20 mA, RS485, 0–5 V, 0–10 V (customizable) |
| Power Supply | DC 12–30 V |
| Protection Rating | IP65 |
| Electrostatic Protection | 15 KV |
| Operating Temperature | -20 to +85°C |
| Operating Humidity | 0%–95% RH (non-condensing) |
| Dimensions | Φ70 × 157 mm |
PRODUCT APPLICATION
The TH-100-01X wind speed sensor is widely used in weather stations, greenhouses, smart agriculture systems, photovoltaic power stations, wind energy projects, ports, docks, roads, bridges, outdoor safety monitoring, and industrial environmental monitoring.
It is suitable for outdoor monitoring systems that require real-time wind speed data collection. By helping users understand on-site wind speed conditions, it provides useful data support for weather analysis, environmental management, equipment operation, safety warning, and automation control.
